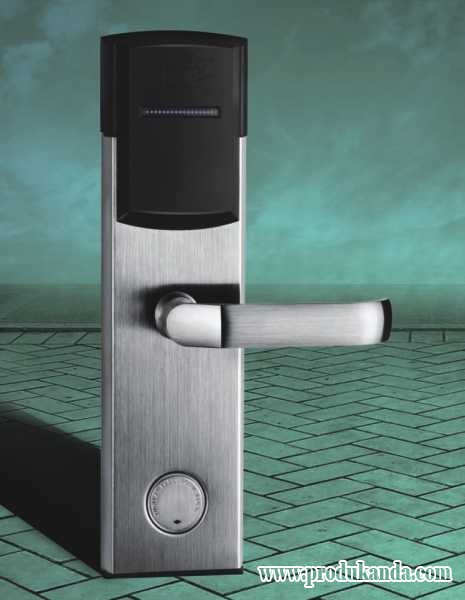

- Features:
- Fashionable design
- Free structure handle, anti-violence opening, thicker than ordinary ones in market
- Plastic cover treated for anti-scratch by card-swiping
- 2mm built-in steel panel to reinforce solidity of lock and reliable anti-burglar
- Suitable for hotels, high-grade offices and households use
- US standard five-latch mortise with anti-pick function
- There is no external wiring, installation is easy and reliable over time
- Specifications:
- Power supply: 4.7 to 6.5 and 4 x 1.5V DC
- Battery lifespan: >15,000 times
- Quiescent curre
- nt: <27μA
- Working current: <500mA, single-run 0.2 seconds
- Environment temperatures: -25 to 60°C
- Working humidity: 15 to 95%RH
- Inductive distance: 0 to 5cm
- Inductive sensitivity: <0.2 second, 100% effective and accurate to read card
- Anti-static: >15,000V (instant)
- Applicable chip: Mifare-1 (13.56MHz) and Temic-5557 (125kHz)
- Frequency range: 125kHz to 13.56MHz
- Materials: stainless steel and zinc-alloy
- Finish: satin stainless steel and satin gold
- Thickness: 7.5mm
- Width: 130mm with curved end
- Effective time of opening lock: 6 seconds
- Alarm point of low voltage (beep and red light): 4.7V, another 100 times for opening afterwards
- Lock-fail warning: door in unlatched state and beeps after five seconds
- Data query: audit trail records last 992 unlocking transactions
- Mechanical key: standard over-ride to ensure door to be unlocked in emergency
- Software system: operation authority of all levels of operators can be set in system, meets five levels management
- Door thickness: 38 to 80mm
